Mobile App Performance Optimization – what is it?

Mobile app performance optimization refers to identifying and improving code that plays a significant role in user experience – such as app start time, the loading time between screens, or time spent completing tasks.

In the ever-growing app market, users can easily uninstall slow mobile apps and swiftly try the next app on the list. Mobile app performance doesn’t just refer to codebase quality and infrastructure – the user experience of the application’s responsiveness defines it.

Along with that, Android and iOS storefronts incentivize app performance by giving lower search rankings to less-performant apps. App stores do this because more-performant apps provide a better UX and deliver more business value which we’ll see below.

Why is Mobile App Performance Optimization Important?

Brand Preference

      52% of users suggested they are less likely to interact with a brand after a poor mobile app experience

Brand Reputation

       36% of users who had experienced slow performance issues had a lower opinion of the company

Customer Retention

       96% of users say app performance – factors such as speed and responsiveness – matters when deciding whether to keep or uninstall an app

What is PS Tool?

If you’re unfamiliar with the concept of tracing, performance analysis can initially seem overwhelming. Our PS tool will change the way you think about performance engineering. With our visualizations, you will effortlessly understand how every function relates to another and identify relevant code optimization opportunities.

At Product Science (PS), we offer a set of tools for mobile app performance engineering that includes:

  • Dynamic automatic code instrumentation via AI-powered plugins added to the build process;
  • PS multi-threaded code profiling tool highlights critical functions and frameworks that impact user experience, revealing the root cause of problems;
  • PS Companion mobile app to record and upload traces from your mobile device.

By replacing manual instrumentation and embedding right into the build processes, we enable anyone to identify points of app causation of performance issues with clear visualization.

Who is PS Tool for?

PS Tool empowers anyone who understand code to use our visualization tool powered by AI to find performance optimization insights.

How does PS Tool work?

Start with instrumenting your app’s code with our PS Gradle plugin / Xcode Code Injector powered by AI which  only visualizes functions that impact your mobile app’s performance.

PS Tool profiles and visualizes recorded (user) flow and our AI will then suggest execution paths –  the sequence of functions executed – that empower identification of performance opportunities.

How to see performance optimization insights, step by step:

  1. Use our plugin during the build process to instrument your code
  2. Run the build on the target device
  3. Record the trace and video while the app runs and walk through a flow that you want to optimize performance for
  4. Upload the recorded trace using our PS Companion App
  5. Visualize insights with PS Tool

Essentials Steps

To get unique insights to your code with our PS Tool, follow the step by step below:

Instrumentation

Instrument and build the app with our plugin, so it can analyze your code.

How to Instrument

Android / Gradle

1. Credentials

Product Science shared access credentials (`productscience.properties` file) via Bitwarden sent. Please place it in the root directory of your project.

2. Add Product Science maven repository

In `build.gradle` add the maven build info to the repositories for project and subprojects:

Groovy
build.gradle

---CODE groovy language-groovy---

buildscript {

   repositories {

       maven {

           url "https://artifactory.productscience.app/releases"

       }

   }

   dependencies { ... }

}



allprojects {

   repositories {

       maven {

           url "https://artifactory.productscience.app/releases"

       }

   }

}

---END---

Kotlin DSL
build.gradle.kts

---CODE kotlin language-kotlin---

buildscript {

   repositories {

       maven {

            url "https://artifactory.productscience.app/releases"

       }

   }

   dependencies { ... }

}

allprojects {

   repositories {

       maven {

            url "https://artifactory.productscience.app/releases"

       }

   }

}

---END---

If the project is configured to prefer settings repositories maven source should be added to settings file:

Groovy
settings.gradle

---CODE groovy language-groovy---

...

dependencyResolutionManagement {

    repositoriesMode.set(RepositoriesMode.FAIL_ON_PROJECT_REPOS)

    repositories {

        maven {

            url "https://artifactory.productscience.app/releases"

        }

    }

}

---END---

Kotlin DSL
settings.gradle.kts

---CODE kotlin language-kotlin---

...

dependencyResolutionManagement {

   repositoriesMode.set(RepositoriesMode.FAIL_ON_PROJECT_REPOS)

   repositories {

       maven {

           url "https://artifactory.productscience.app/releases"

       }

   }

}

---END---

In another case, if `allprojects` is not present in top level `build.gradle` then add it in the top of the file.

3. Add Product Science plugin to `classpath`

Contact your Sales Engineer to get the `Version` of the Plugin to replace the `VERSIONSUPPLIEDBYPSI` with the `Version` we supply.

Groovy
build.gradle

---CODE groovy language-groovy---

buildscript {

   repositories { ... }

   dependencies {

       classpath "com.productscience.transformer:transformer-plugin:0.16.3"

       classpath "com.productscience.transformer:transformer-instrumentation:0.16.3"

   }

}

   ...

---END---

Kotlin DSL
build.gradle.kts

---CODE kotlin language-kotlin---

buildscript {

   repositories { ... }

   dependencies {

       classpath("com.productscience.transformer:transformer-plugin:0.16.3")

       classpath("com.productscience.transformer:transformer-instrumentation:0.16.3")

   }

}

...

---END---

Please label your build with the PSi Plugin Version from above i.e. `MyAppPSi0.9.1.apk` so our AI can learn how its dynamic instrumentation is performing on the build.

4. Apply the Product Science Plugin

Apply plugin to `app/build.gradle`

Groovy
app/build.gradle

---CODE groovy language-groovy---

plugins {

     id "com.android.application"

     id "kotlin-android"

}

apply plugin: "com.productscience.transformer.plugin"

 ...

---END---

Kotlin DSL
app/build.gradle.kts

---CODE kotlin language-kotlin---

plugins {

     id("com.android.application")

     id("kotlin-android")

     id("com.productscience.transformer.plugin")

}

...

---END---

5. Add Proguard rules

If the application uses obfuscation/shrinking add a new ProGuard rule to your project.

To achieve it add the next line to the R8/ProGuard configuration file:

---CODE bash language-bash---

proguard title="proguard-rules.pro."

-keep class com.productscience.transformer.module.** { *; }

---END---

Your project may use the other proguard file name.

More information about R8/ProGuard configuration can be found here: https://developer.android.com/studio/build/shrink-code

6. Build your app

Now you can build your app with Gradle, i.e.:

---CODE bash language-bash---

./gradlew assemble

---END---

Please label your build with the Plugin Version from above i.e. `MyApp_PSi-0.14.2.apk` so our AI can learn how its dynamic instrumentation is performing on the build.

Enabling the plugin by build type

For plugin versions greater than **0.12.1**, you can integrate Product Science pipeline into your gradle build selectively apply the plugin to a given build type by adding a `productScience` block at the top level of your `app/build.gradle` file.

Inside the proguard block, add a block corresponding to the build type (must have the same name) and set `enabled` to `true`.

Groovy
app/build.gradle

---CODE groovy language-groovy---

plugins {

   id "com.android.application"

   id "kotlin-android"

}

apply plugin: "com.productscience.transformer.plugin"

productScience {

   psiRelease {

       enabled true

   }

}

android {

   ...

   buildTypes {

       psiRelease {

           minifyEnabled true

       }

       release {

           minifyEnabled true

       }

   }

}

---END---

Kotlin DSL
app/build.gradle.kts

---CODE kotlin language-kotlin---

plugins {

   id("com.android.application")

   id("kotlin-android")

   id("com.productscience.transformer.plugin")

}



productScience {

   create("psiRelease") {

       isEnabled = true

   }

}



android {

   ...

   buildTypes {

       create("psiRelease") {

           isMinifyEnabled = true

       }



       getByName("release") {

           isMinifyEnabled = true

       }

   }

}

---END---

If the `productScience` block is missing or empty, the plugin will be applied to all build types. If one or more build types appear in the `productScience` block, the plugin will be applied only to those build types that have `enabled` set to true.

CICD / Gradle

Product Science suggests two main approach for integration Gradle plugin in CICD.

Build Variant

This approach is based on Gradle build variant. A build variant `psiRelease` is created for instrumented version of the app. PS Plugin is applied only for this build variant.

Groovy
app/build.gradle

---CODE groovy language-groovy---

plugins {

    id 'com.android.application'

    id 'kotlin-android'

}

apply plugin: "com.productscience.transformer.plugin"

productScience {

    psiRelease {

        enabled true

    }

}

android {

    defaultConfig { ... }

    buildTypes {

        release {

            ...

        }

        psiRelease {

            ...

        }

    }

}

---END---

Kotlin DSL
app/build.gradle

---CODE kotlin language-kotlin---

plugins {

    id("com.android.application")

    id("kotlin-android")

    id("com.productscience.transformer.plugin")

}

productScience {

    create("psiRelease") {

        isEnabled = true

    }

}

android {

    ...

    buildTypes {

        create("psiRelease") {

            ...

        }

        getByName("debug") {

            ...

        }

    }

}

---END---

Build can be triggered with gradle command:

---CODE bash language-bash---

./gradlew assemblePsiRelease

---END---

Conditional plugin apply

This approach is based on conditional applying of gradle plugin. PS Plugin is applied only when the value of `USE_PSTOOL` environment variable is true.

Groovy
app/build.gradle

---CODE groovy language-groovy---

plugins {

    id 'com.android.application'

    id 'kotlin-android'

}

if (System.getenv("USE_PSTOOL")) {

    apply plugin: "com.productscience.transformer.plugin"

}

---END---

Kotlin DSL
app/build.gradle

---CODE kotlin language-kotlin---

plugins {

    id("com.android.application")

    id("kotlin-android")

    val usePSPlugin: Boolean = System.getenv("USE_PSTOOL").toBoolean()

    if (usePSPlugin) {

        id("com.productscience.transformer.plugin")

    }

}

---END---

Build can be triggered with gradle command:

---CODE bash language-bash---

USE_PSTOOL=true ./gradlew assembleRelease

---END---

User Flow Annotation

Manual Annotation for User Flows

In addition to automatically instrumenting your app, the Product Science SDK provides a `userflow` library that enables manual annotation of user flows in your code. This can be useful for tracking and comparing timing changes between specific events across traces.

The steps to add and use the library are below.

Dependencies

Add the userflow library as a dependency in `app/build.gradle`

---CODE groovy language-groovy---

dependencies {

    implementation "com.productscience.userflow:userflow:0.15.1"

}

---END---

Annotation Process

There are three static methods used to annotate user flows:

  • `UserFlow#start`
  • `UserFlow#custom`
  • `UserFlow#end`

Each of these methods take an integer argument (UserFlow ID) and a nullable String argument (comment).

1. Starting a UserFlow

To start a UserFlow, call `UserFlow#start` and pass it an ID and a String message.

---CODE kotlin language-kotlin---

UserFlow.start(1, "App start begins")

---END---

2. Annotations UserFlow's milestones

While a UserFlow is in progress, you can make calls to `UserFlow#custom` passing the UserFlow ID and a String message. This can be useful to annotate events along the UserFlow (e.g., reaching a milestone or annotating different conditional paths among others).

---CODE kotlin language-kotlin---

UserFlow.custom(1, "UserFlow hit milestone")

---END---

3. Ending a UserFlow

To end a UserFlow, call `UserFlow#end` passing the ID of the UserFlow to end and a String message.

---CODE kotlin language-kotlin---

UserFlow.end(1, "App start complete")

---END---

Examples

UserFlow Annotations on PSTool

Sample app

There is a sample app demonstrating the use of the userflow library at: https://github.com/product-science/demoapps-private/tree/main/Android/userflow-android-example

Project Integration

By default, UserFlow Annotations are added to traces only when Product Science plugin is applied. To annotate user flows without applying the plugin, call `UserFlow#setAlwaysAnnotate(true)`.

_CAUTION_: using this method can enable unwanted annotations in production builds. You will have to take steps to ensure that UserFlow annotations are only called where appropriate.

iOS

1. Key Generation Methodology- PSi:

  • Generates a token (key) via GitHub
  • Saves key in Bitwarden credential storage
  • Shares token with Bitwarden Send
  • Keys have an expiration date

This step is not needed if you use standalone build.

2. Configure `productscience.yaml`

Set up productscience.yaml in the Xcode app project directory:

---CODE bash language-bash---

productscience.github.config: <supplied-by-PSi>

productscience.github.token: <supplied-by-PSi>

productscience.token: <supplied-by-PSi>

---END---

example productscience.yaml:

---CODE bash language-bash---

productscience.github.config: product-science-configs:ios-template-configs:config.yaml:main

productscience.github.token: ghp_XXXXXXXXXXXXXXX

productscience.token: XXXXXXXXXXXXXXXXXXXXXXXXXXXXX

---END---

3. Configure and Test `xcodebuild`

Prepare an `xcodebuild` command to build the app in terminal.

For projects that are organized with `xcworkspace`:

---CODE bash language-bash---

xcodebuild \

   -workspace MyApp.xcworkspace \

   -scheme MyAppScheme \

   -sdk iphoneos

---END---

For `xcodeproj` based projects:

---CODE bash language-bash---

xcodebuild \

   -project MyApp.xcodeproj \

   -scheme MyAppScheme \

   -sdk iphoneos

---END---

Ensure that your app can build successfully before using the `PSCliCodeInjector`. A reference example using the Firefox Fennec iOS app is shown below.

4. Install `PSTools` Instrumentation Injection Kit

You will need to use the github credentials supplied by PSi to above to follow these steps:

  1. Download the lastest PSTools-PLATFORM.zip from this link and unzip it
  2. Install PSTools/PSCliCodeInjector.pkg on your Mac with double-click
  3. Copy PSTools/PSKit to ps-workdir i.e.  `cp -r PSTools/PSKit .`

See the Firefox example below for sample final directory structure.

Please label your build with the PSi Plugin Version from above i.e. `MyAppPSi0.9.1.ipa` so our AI can learn how its dynamic instrumentation is performing on the build.

5. Build

  • Ensure that the `PSKit` tool folder is at the same folder level as your project i.e.:

---CODE bash language-bash---

drwxr-xr-x@  5 user  staff       160 Jul 12 16:24 PSKit

drwxr-xr-x@  6 user  staff       192 Jul  5 10:22 PSTools

drwxr-xr-x  76 user  staff      2432 Jul 12 16:26 MyApp

---END---

  • Run PSTool code transformation and configuration fine-tuning. The `PSCliCodeInjector` command must be run at the folder level above where the `.xcodeproj` sits and run against that folder. For example, if the project is `./MyApp/MyApp.xcodeproj` then from the `.` level folder run:

---CODE bash language-bash---

PSCliCodeInjector MyApp \

   --backup-dir MyApp-BACKUP \

   --sub-folders=. \

   --console-build-command="<BUILD-COMMAND-FROM_STEP-3>"

---END---

This step transforms the code of within the `MyApp` project folder.  A backup of the original `./MyApp` will be created at the same folder level where injection is run i.e. `./MyApp-BACKUP`.

The BUILD-COMMAND-FROM_STEP-2 is the choice between the xcworkspace or xcodeproj methods and their associated flags. These are examples of xcodebuild templates - yours may differ. See the Firefox app example below.

Warning: PSCliCodeInjector parses the command’s output to identify issues with the injected code. Be sure not to pipe the build’s results through tools like xcbeautify, xcpretty, etc. or this logic might not work correctly.

When complete, the `MyApp` directory will have been transformed. Use this directory for your build.

  • Open project from `MyApp` directory
  • Build and export the app in your default pipeline.
  • Send us MyApp/psfilter.txt if it exists

Please label your build with the PSi Plugin Version from above i.e. `MyAppPSi0.9.1.ipa` so our AI can learn how its dynamic instrumentation is performing on the build.

Example: Firefox for iOS

1. Clone Firefox iOS repo

---CODE bash language-bash---

git clone https://github.com/mozilla-mobile/firefox-ios

---END---

2. Configure and test `xcodebuild`

In the `firefox-ios` directory

---CODE bash language-bash---

xcodebuild \

   -project Client.xcodeproj \

   -scheme Fennec \

   -destination 'name=iPhone 13 mini' \

   -sdk iphoneos

---END---

Note this example uses `iPhone 13 mini` as the example destination- this can be changed.

3. Create Creds and install PStools

Create the `productscience.yaml` file in the `firefox-ios` directory as shown in Step 2 above.

Download, unzip, and install `PStools` as shown in Step 4 above.

Make sure that the `PSKit` is in the same top level directory level as `firefox-ios`:

---CODE bash language-bash---

cp -r PSTools/PSKit .

---END---

i.e.

---CODE bash language-bash---

drwxr-xr-x@  5 user  staff       160 Jul 12 16:24 PSKit

drwxr-xr-x@  6 user  staff       192 Jul  5 10:22 PSTools

drwxr-xr-x  76 user  staff      2432 Jul 12 16:26 firefox-ios

---END---

If you use standalone put `productscience.zip` archive in project directory.

4. Build with `PSCliCodeInjector`

This is done in the same directory level as the `firefox-ios` directory i.e. the same one as shown above - NOT IN the `firefox-ios` directory:

---CODE bash language-bash---

drwxr-xr-x@  5 user  staff       160 Jul 12 16:24 PSKit

drwxr-xr-x@  6 user  staff       192 Jul  5 10:22 PSTools

drwxr-xr-x  76 user  staff      2432 Jul 12 16:26 firefox-ios

---END---

---CODE bash language-bash---

PSCliCodeInjector firefox-ios --backup-dir firefox-ios-BACKUP \

   --sub-folders=. \

   --console-build-command=\

     "xcodebuild \

         -project Client.xcodeproj \

         -scheme Fennec \

         -destination 'name=iPhone 13 mini' \

         -sdk iphoneos"

---END---

When complete, the `firefox-ios` directory will have been transformed. `firefox-ios-BACKUP` is a directory with original project.

---CODE bash language-bash---

drwxr-xr-x@  5 user  staff       160 Jul 12 16:24 PSKit

drwxr-xr-x@  6 user  staff       192 Jul  5 10:22 PSTools

drwxr-xr-x  76 user  staff      2432 Jul 12 16:26 firefox-ios

drwxr-xr-x  77 user  staff      2464 Jul 12 16:46 firefox-ios-BACKUP

---END---

Use `firefox-ios` for your pipeline or Xcode.

Recording

Record the trace and video by running your instrumented app on the target device and walk through use flow you want to optimize.

Android

Preparation (Only Needs to be Done Once)

Install PS Companion app

  • Make sure to log in before moving on to the next step.

Enable tracing

1. First, you’ll need to enable developer options and USB debugging:

  • Settings > About Phone > Software information > Build Number
  • Tap the Build Number option 7 times

2. Then, you can enable tracing:

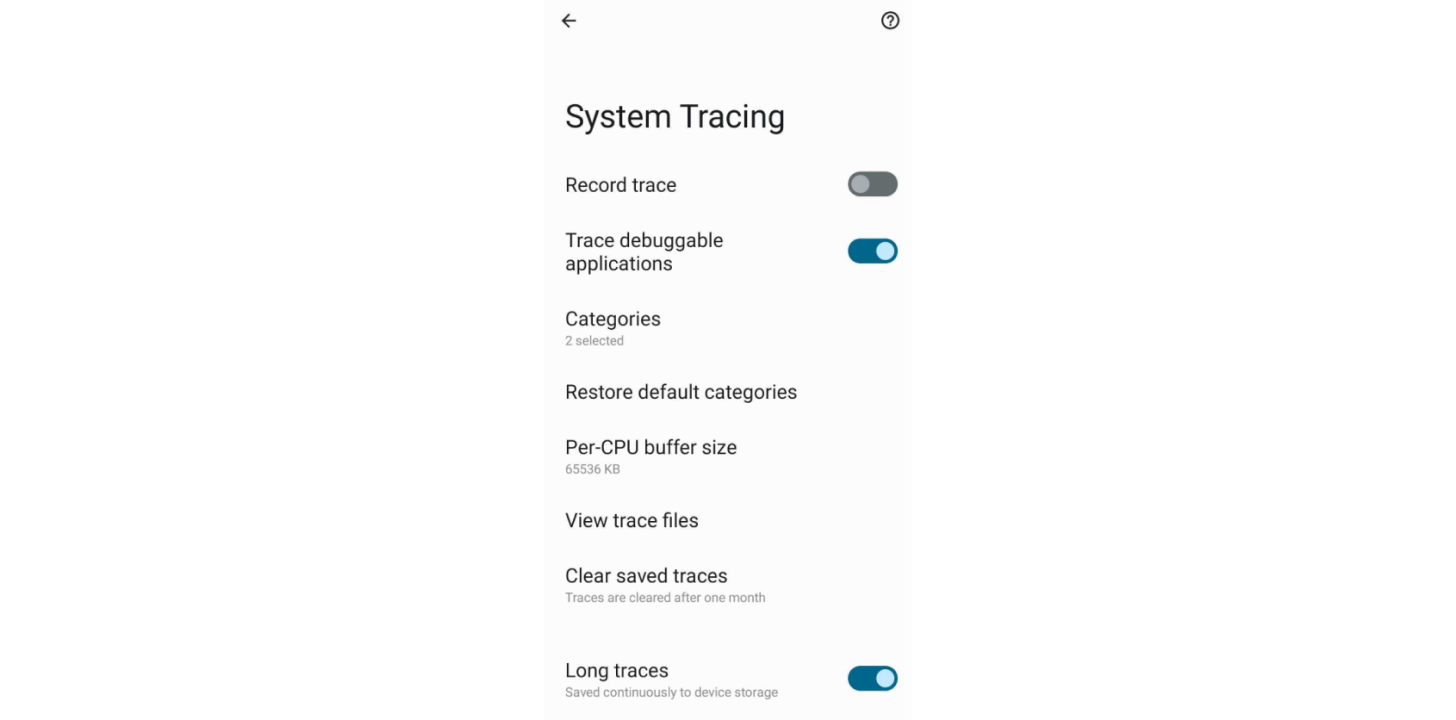

  • Settings > System > Developer Options > Debugging section> System Tracing
  • Make sure to turn off all categories except view: View System and sched: CPU Scheduling
  • Enable Show Quick Settings tile. This will add System Tracing tile to the Quick Settings panel, which appears as an upper panel:
  • Hold down the "bug" button to yield the full trace menu
  • Enable "Long traces"

Trace and Screen Recording

Install instrumented app
Screen recording (optional but highly recommend)
  • Capturing how your application functions in real life provides valuable context that helps to understand what’s happening - even when the code is hard to follow. With screen recording, you can see when the user interacts with the application (action: start of the user flow) and when the application screen is updated (reaction: end of the user flow). We highly recommend you to record your screen to complement your trace analysis.
    Learn more about how to make the most out of videos.

Record your phone screen (Source: Google)

  1. Swipe down twice from the top of your screen.
  2. Tap Screen record screen recording button
    • You might need to swipe right to find it
    • If it's not there, tap Edit edit button and drag Screen record screen recording button to your Quick Settings
  3. Choose what you want to record and tap Start. The recording begins after the countdown.
  4. To stop recording, swipe down from the top of the screen and tap the Screen recorder notification screen recording button

How to record when there is no screen recorder feature

We recommend you to download 3rd party apps such as Screen Recorder - XRecorder.

Find screen recordings (Source: Google)

  1. Open your phone's Photos app photos app button
  2. Tap Library next button picture Movies
Record trace

Generally, we recommend recording traces with a cold start where everything will be initialized from zero. This type of app launch is usually the slowest because the system has a lot of expensive work to do compared to the other two states (warm and hot starts where the system brings the app running from the background to the foreground).

Optimizing any user flow with cold start enables you to improve all app processes that are being created from scratch which can enhance the same user flow’s performance with warm and hot starts as well.

Step

To record App Start Flow

To record any Flow other than App Start

2

Make sure you are logged in to our PS Companion App.

Make sure you are logged in to our PS Companion App.

3

Open the targeted app.

4

Start recording a trace by selecting the bug icon or ‘record trace’ button from the quick settings tile.

Perform the user actions from the (user) flow and stop before the last step

5

Open the targeted app.

6

-

Start recording a trace by selecting the bug icon or ‘record trace’ button from the quick settings tile.

7

-

Perform the last step from the (user) flow

8

Once the main page is fully loaded, tap the bug icon or ‘stop tracing’ button to stop recording the trace.

Once the main page is fully loaded, tap the bug icon or ‘stop tracing’ button to stop recording the trace.

9

Stop screen recording (if needed).

Stop screen recording (if needed).

10

Wait for a “success” dialog drawn on top of your app.

Wait for a “success” dialog drawn on top of your app.

Best Practices

  • Avoid doing any unnecessary actions outside of the flow.
  • Click and wait for each screen to fully load and any functions to complete before clicking on the following button (if necessary).
  • Avoid performing the flow too fast, and functions from different screens might overlap.
  • Avoid performing the flow too slowly, and you are further away from understanding how a user will interact with the app.
  • Record your screen!
    Why? Learn more about it

iOS

Preparation (Only Needs to be Done Once)

Install our PS Companion App
Customize share sheet

To make it easier for exporting your traces in the upcoming steps, we recommend to customize your iPhone share sheet so that you can have the PS companion readily available.

  • Tap the icon
  • Share sheet appear
  • If the PS Companion App is not shown, swipe all the way to the right
  • Tap more
  • Tap Edit on the top right
  • Tap the green plus icon for PS Companion app

Trace and Video Recording

Install instrumented app
Screen recording (optional but highly recommend)
  • Capturing how your application functions in real life provides valuable context that helps to understand what’s happening - even when the code is hard to follow. With screen recording, you can see when the user interacts with the application (action: start of the user flow) and when the application screen is updated (reaction: end of the user flow). We highly recommend you to record your screen to complement your trace analysis.
    Learn more about how to make the most out of videos.

Record your phone screen (Source: Apple)

  1. Go to Settings > Control Center, then tap the Add button add button next to Screen Recording.
  2. Open Control Center on your iPhone , or on your iPad.
  3. Tap the gray Record button record button, then wait for the three-second countdown.
  4. Exit Control Center to record your screen.
  5. To stop recording, open Control Center, then tap the red Record button record button. Or tap the red status bar at the top of your screen and tap Stop.

Find screen recordings

  1. Go to the Photos app and select your screen recording.
Record trace

Generally, we recommend recording traces with a cold start where everything will be initialized from zero. This type of app launch is usually the slowest because the system has a lot of expensive work to do compared to the other two states (warm and hot starts where the system brings the app running from the background to the foreground).

Optimizing any user flow with cold start enables you to improve all app processes that are being created from scratch which can enhance the same user flow’s performance with warm and hot starts as well.

Step

To record App Start Flow

To record any Flow other than App Start

2

Make sure you are logged in to our PS Companion App.

Make sure you are logged in to our PS Companion App.

3

Open the targeted app.

4

Tap the button on PS Companion App to start recording

Perform the user actions from the(user) flow and stop before the last step.

5

Open the targeted app.

6

Perform the user actions from the (user) flow and that you want to optimize.

Tap the button on PS Companion App to start recording

7

-

Perform the last step from the (user) flow.

8

Once the final step is fully loaded, tap the button to stop recording.

Once the final step is fully loaded, tap the button to stop recording.

Uploading

Upload recorded traces to PS Tool.

Android

Upload trace to PS Tool

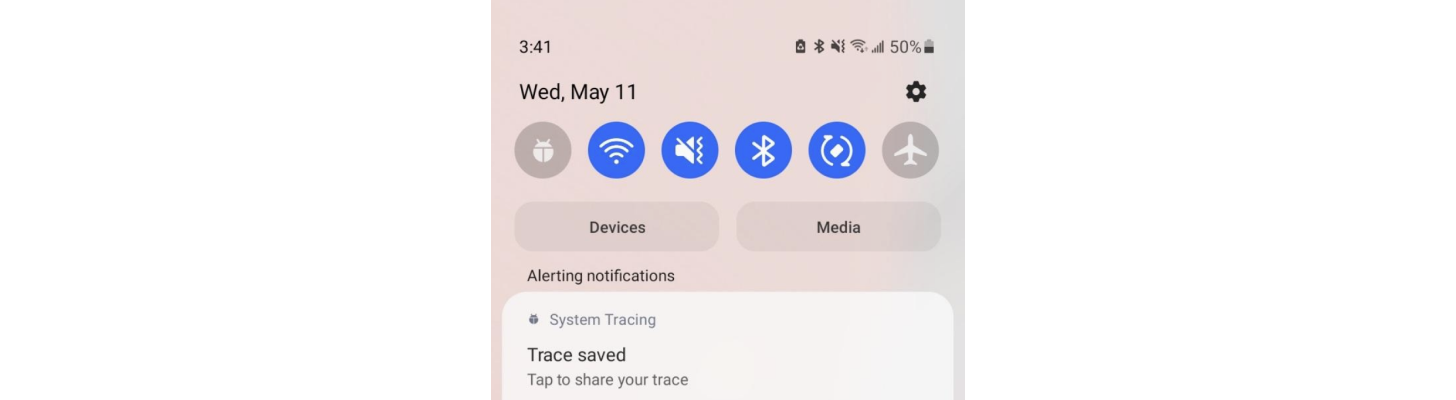

  • After recording a trace file, tap the file to export it. You will be given the option to save it or export it to different apps.
  • Export your trace file to the PS Companion App

    Alternatively, you can manually upload traces via web interface.
  • Name the trace, assign it to the relevant flow and then upload it to our cloud.
  • Uploaded trace will appear in your productscience.app Flow Library

    Alternatively, you can enable the “subscribe” functionality in the Flow Library to get an email containing a link to a new trace when it uploads.
    Want to upload it via web interface? Learn how to.
  • For any errors, our system will return a message explaining what went wrong. If you can’t resolve the issue, please don’t hesitate to contact us at support@productsience.ai

PS Companion Mobile App Alternative

For the most seamless experience, we highly recommend using our mobile app or uploading traces.

But in instances where that fails, you can also upload traces via:

Export trace from the Files app

  • On mobile devices running Android 10 (API level 29), traces are shown in the Files app

Download traces with command line (Optional)

  • Connect your android device to a computer via USB
  • Command-line for downloading traces: adb pull /data/local/traces/

Manual upload via Web Interface

iOS

Upload trace to PS Tool with PS Companion App

  • Tap the "export" button to export your trace file.
  • Open it with our PS companion app.

Don’t see PS Companion app? Customize the share sheet

  • Name the trace, assign it to the relevant flow and then upload it to our cloud.
  • Uploaded trace will appear in your productscience.app Flow Library.

    Alternatively, you can open the trace file via the link we sent to your email for every successful upload.
    Or, upload via web interface. Learn how to.
  • For any errors, our system will return a message explaining what went wrong. If you can’t resolve the issue, please contact us at support@productsience.ai.

View uploaded trace

  • You can find previously recorded traces organized by user flow under the Discover Projects tab
  • Select a flow to see the uploaded traces corresponding to that flow

Delete trace

  • To delete an uploaded trace, swipe left and select the trash icon

PS Companion Mobile App Alternative

Export trace file to computer (Optional)
  1. Open Finder > Locations > iPhone > Files
  2. Select the Application‌
  3. Airdrop or share the "trace.json" via iCloud to your computer

Download with command line (Optional)

Also the open source app ios-deploy can be used for getting traces.

  • Install with Homebrew

---CODE bash language-bash---

brew install ios-deploy

---END---

  • Download `trace.json`

---CODE bash language-bash---

ios-deploy --bundle_id <APP'S BUNDLE ID>\\

   --download=/Documents/trace.json \\

   --to .

---END---

Manually upload trace to flow library

Record Trace with Video

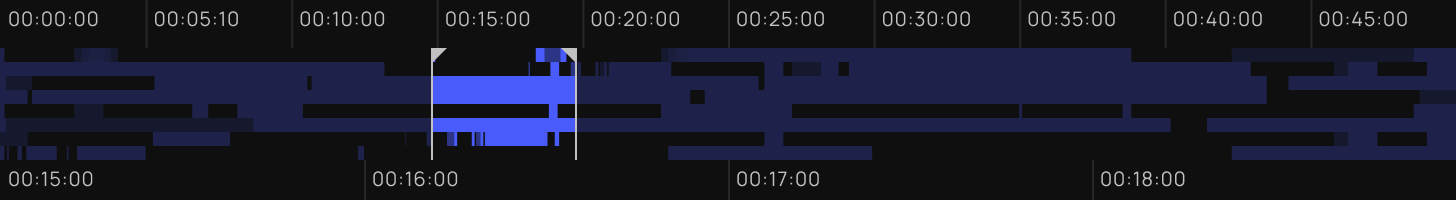

With the Video synced with trace feature you will be able to see what’s happening on the phone screen at every point of the recorded trace.

Video synced with trace feature allows you to

  • Easily find the beginning and end of user flows
  • See the user actions in real life
  • Visually identify performance opportunities (like jitteriness, lags and long network requests)
  • Visually identify when the screen was updated

The solid visual cues demonstrate precisely how the app works for your user or errors your app may be receiving that cannot be gained from the code alone.

Upload Screen Recordings

You can upload screen recordings to our tool either with our companion app or directly with  PS Tool.

Via PS Companion App
  • In Flow > Select a user flow > Trace details screen opens.
  • Tap ‘Upload’.
  • Phone library opens > select the screen recording > ‘Upload’.
  • Wait for the status bar to change from ‘Video processing in progress’ to ‘Video upload successfully’.
  • Upload success. You can now view and annotate the video in the PS Tool.

Learn more about how to make the most out of the videos.

Via PS Tool
  • In Trace Viewer > Open the Video Panel on the right.
  • Click ‘Upload a video.’
  • Drag and drop or browse to upload a screen recording.
  • Once the upload is completed, you will see the global timeline replaced by the video.

Learn more about how to make the most out of the videos.

Delete Screen Recordings

You can delete screen recordings uploaded either with our companion app or directly with  PS Tool.

Via PS Companion App
  • In Flow > Select a user flow > Trace details screen opens.
  • Tap ‘Delete’.
Via PS Tool
  • In Trace Viewer > open up the Video panel on the right.
  • Click the trash icon.

Learn more about how to make the most out of the videos.

Working with PS Tool

At Product Science, performance optimization starts with defining key (user) flows that bring the most value to users. We visualize your code that empowers you to capture optimization opportunities that impact user experiences. You can optimize how quickly the app starts up, how its processes perform, how smooth animation is, etc.

At the center of the PSTool Dashboard is the trace viewer which shows essential information, such as what functions were invoked, their duration, and execution paths. Visualizing execution paths here is critical because it allows you to see the sequence of functions and how they connect and highlight optimization opportunities.

Accessing the PS Tool

Visit productscience.app and log in using your company email.

Flow Library

Flow library organizes all traces by (user) flow. This is where you can view, subscribe, manage and create flows. Like a folder in a file system, each flow contains traces of user flows that your team records and optimizes. Use Flow Library to group traces by flows that make the most sense to you and your team. Add a description to communicate the context of the flows.

Open a trace in PS Tool

Flow Library > Select a flow card > Flow Table > right click any trace > click “open”

Create new flow

      1. In Flow Library > click “Create new flow”

      2. Enter your flow name & description

(User) Flow Screen

The Flow Screen is where you can find all the traces uploaded associated with a single flow. This is where you can add, delete, edit, and assign your trace.

We encourage you to record more than one trace for every flow. More recordings can increase the statistical significance of your “findings”. Specifically for flows containing asynchronous I/O operations like network requests, recording multiple traces can increase your confidence in locating patterns of performance issues within the trace.

Add new trace

Via our PS Companion app

Via manual upload

      1. Click the “Add new trace” button on the Flow screen

      2. Upload traces by dragging the trace or browse from computer

      3. Once the trace is uploaded successfully, you shall see the message

Via select from unassigned

Alternatively, you can use traces that were previously uploaded but not assigned.

      1. Click on "Review and assign" button

      2. Check the box for the trace you would like to assign

      3. Select the flow you would like to flow to be assigned to

Delete flow

      1. In Flow Library > hover over the bottom right corner of flow

      2. Click on the "..." button on the flow card

Edit flow description

      1. Flow Library > Flow card > Flow settings

Assign trace to another flow

      1. In the Flow screen

      2. Click on the trace > menu will appear > click "Assign"

      3. Select one or multiple flows you want to assign the trace to > Click "Done"

Trace Viewer

A trace is a time series snapshot of your app. Our dynamic, multi-threaded tracing tool captures and measures all functions executed during the recording. While millions of events and functions might be executed on the system level, our AI filters key functions that impact your user experience the most while filtering out all irrelevant information.

Slices

The width of the trace represents duration of the executed process while where it positions indicates the start time. A slice represents a single unit of work done by the CPU, and the width (X-Axis) of the slice represents the duration of the executed process and its position indicates the start time. Learn more


The nesting (Y-Axis) of slices represents the call stack of a specific function.

In the image below, you can see how function B ( Slice B ) was called by function A (slice A)

Execution Path

The execution path is the most helpful tool to determine where the delays are coming from. It shows which function call stacks  are called by which function call stacks, so you can quickly see not just how individual functions are related but by how groupings of functions are related, creating an elevated perspective of the code which makes it easier to zoom-out and quickly find the root cause of a problem.

Navigate main timeline

The center of the dashboard is what we call the main timeline of your user flow. It tells you about your different processes at a specific time. Though you won’t be able to view the details of slices here, you can see when your app is fully loaded and when it’s idling.

To navigate the main timeline view, in addition to your trackpad, you can use the following key commands:

W - Zoom in

S - Zoom out

A - Move left

D - Move right

Navigate aggregation view (global timeline)

In the timeline near the top of the dashboard, you’ll see what looks like a measuring tape.

  • Numbers at the top indicate where you are based on the trace's timeline.
  • Numbers at the bottom measure the distance between functions on the trace or the time it takes for a function to execute.

You can adjust the focus area by dragging the blue limit handles located on the edges.

Slices

The visual representation of a code’s function/process. The length of the slice indicates how long it takes that process to execute.

The width of the slice represents the duration of the executed process and its position indicates the start time.

Property Panel

The property panel allows you and your contributors to:

  • View and copy details of the slices including slice name, thread name, slice ID, object ID, start time, and duration.
  • Create manual connections
  • Find execution path-related tools such as:

    Show/hide all paths

             Sort threads by execution path

             Dim slices outside of execution path

  • Review connections
  • Customize flags

Execution Paths

      1. Click on any slice and our system will automatically check any connections linked to this slice. In other words, we highlight actions and processes that occurred resulting in the slice you chose.

      2. Once an execution path – a one-directional linked list of slices –  is found, you should see lines like the example below. For example, if Slice A calls Slice B, they will be connected.

The green path is what we refer to as the main execution path; it usually contains more slices than the other lines and gives you a better image of where the delays are located.

      3. Open property panel

      4. Click the button below to hide/show other non-main execution paths

Example of clicking the filtering button to only show the main execution path

      5. View slice and connection details on the property panel (right side)

Create manual connections

      1. Click on a slice > Slice details show in the property panel.

      2. Click the "create connection" icon next to the slice or press C while the slice is selected.

      3. Slices that cannot be connected to the slice clicked are dimmed.

      4. Repeat step 2 to connect more slices.

Working with Video

In the Trace Viewer, you can find the Video panel next to the Details panel where you can view, upload, play, pause and remove screen recording of your traces.

Switch between Aggregated and Video views

Option 1: Use the View Toggle [Soon to be released]

  • Trace Viewer > Left of the global / aggregated view timeline;
  • Click on the button toggle to switch between aggregated or video views.

Option 2: Switch between Panels

  • Click on the Video panel > Bring you to the video view where the video frames replace the global timeline.
  • Click on the Details panel >  Bring you back to the default, aggregated view of the trace.
Set Focus Area

On the Main Timeline

  • Trace Viewer > Enable video view.
  • Shift-drag the beginning or end of the focus area - it will adjust the beginning and the end of what you see on the main timeline.
  • The focus area selected will automatically sync with the Video panel.
Current Time Indicator

Current Time Indicator (the purple flag) highlights the current position of the screen recording video on the trace timeline. It is like a vertical ruler that enables you to see how all the threads and slices the current time indicator touches are associated with the video frames shown on the video panel.

Previewer

Hover the top part of the global timeline and you will see the Current Time Indicator Previewer (white flag) appears. Move the previewer along the timeline and you can preview the video on the video panel.

If you click while you’re in preview mode - the current time indicator (purple flag) will move to the clicked position. If you move your cursor out of the global timeline, the video preview in the video panel changes to the current-time indicator position.

Important Tips

  • You can only set current time indicators within the focus area limits.
Play/ Pause Video
  • Open the Video panel.
  • Press 'play' button at the bottom of the video.
  • Screen recording and the current time indicator on the main timeline play in a loop within the limits of the focus area.
  • Press 'pause' button at the bottom of the video to pause both the video and current time indicator.
Loop Video

To make the video repeat continuously

  • For the video to loop from beginning to the end of the video - press
  • For the video to loop within the focus area - press the same button that has now turned blue.
  • To turn the loop feature off - press the button again.

Use Search

      1. Search for any framework and function using the search box at the bottom right

      2. All related instances should be immediately highlighted (while all the other unrelated functions should be dimmed).

      3. Use arrows inside the search box to navigate among the search results

      4. Press Esc or click "x" to exist search

Measure Time

To understand the duration of one function to another, you can use our measurement tool by holding shift + click.

Threads

Smallest executable task of the system. PS multi-threaded code profiling tool highlights critical functions and frameworks that impact user experience, revealing the root cause of problems.

Pin Threads

Click the star to the right of a thread name to pin the thread to the top of the window for easy comparison and reference.

Deprioritize Threads

Click the downward button to the left of a thread to pin the thread at the bottom of the window if you find that particular thread not as informative.

Place a flag

We recommend placing flags at the beginning and the end of a flow. You also get to choose colors of placed flags, which is helpful when you need to keep track of different information.

      1. Hover over the timeline, and you’ll see a gray flag.

      2. Click on the timeline to place the flag.

      3. Our tool will randomly pick a color for your flag, which you can manually edit on the right-hand side of the screen. This is also where you can add labels to your flag.

Pro tip: You can also use the label field for quick notes. Simply click on the “label”, press shift + enter and start typing. That way, the notes you typed won’t show in the timeline, but you can use the notes for future reference.

Delete a Flag

When a flag is no longer relevant, you can remove it by:

      1. Clicking on the flag

      2. Clicking on the "trash can" button when the flag details menu is shown on the right; or pressing "Del" on your keyboard.

Admin Screen

Team

Team is the representation of a company. This is where you can create projects (per single app and operation system) that contain all flows and traces.

Project

Project is where you can create different flows and traces for a single app. You can join and contribute via an invitation from the team's or project’s admin.

Collaborating

Roles and Permissions

Every team member can have team-level permissions that determine their default access to projects.

Team Admin

Update Project Icons and Details

      1. In Project > click "project settings"

      2. Hover over the thumbnail > click on the image icon.

Remove a Project

      1. In Project > click "project settings"

      2. Click "delete project"

Update Team Member’s Role

      1. In Team > click on "team contributors" to view the table.

      2. Click and choose new role under the "Role" Column.

      3. Click out to save

Resend Invitation Link

      1. In Team> Team contributors > click on "team contributors" to view the table.

      2. Click the ".." button on the right of the table > menu appears.

      3. Click "resend invitation link".

Remove a Team Member

      1. Project screen > click on "project contributors" to view the table.

      2. Click the "..." button on the right  side of the table > menu will appear.

      3. Click "delete account".

Update Email Domain

      1. Home page > click "team settings"

      2. Update your company email domain so that everyone with the specified email domain can log in.

Project Admin

Update Team Member’s Role in Project

      1. In Project > click on "project contributors" to view the table.

      2. Click and choose a new role under the "Role" Column.

      3. Click out to save

Remove Team Member

      1. In Project > Project contributor > click on "project contributors" to view the table

      2. Click the ".." button on the rightest of the table > menu appears

      3. Click "delete account’"

Invite New Team Member

      1. In Project > Project contributor > click "invite contributor" on the top right corner.

      2. Input the email and select the role.

      3. Click "Invite"

Resend Invitation Link

      1. In Project > Project contributor > click on "project contributors": to view the table.

      2. Click the ".." button on the far right side of the table of the table > menu will appear.

      3. Click "resend invitation link".

Dictionary

Cold App Start

A cold start refers to an app's starting from scratch: the system’s process has not, until this start created the app’s process. It happens when your app is being launched for the first time since the device booted, or since the system killed the app.

Sample use case

  • Hold your mobile device
  • Close all your opened apps
  • Click on your app icon from home
  • Everything will be initialized from zero

According to Google, the ideal benchmark time should be:

  • Cold startup takes 5 seconds or longer.
  • Warm startup takes 2 seconds or longer.
  • Hot startup takes 1.5 seconds or longer.

Connection

Line connecting two slices showing what previous function triggered the execution of the selected function.

Hot App Start

A hot start refers to when your apps’ process is already running in the background and all the system does is bring your activity to the foreground. This process will bring back your app to the last state where you left without reinitializing any of the app assets.

Sample use case

  • Hold your mobile device
  • Close all your opened apps
  • Click on your app icon from home
  • Everything will be initialized from zero
  • This was so far for a cold start
  • Go back to home
  • Re-open the app again
  • Your app is now bring back to the foreground without reinitialization

According to Google, the ideal benchmark time should be:

  • Cold startup takes 5 seconds or longer.
  • Warm startup takes 2 seconds or longer.
  • Hot startup takes 1.5 seconds or longer.

Instrumentation

Instrumentation is the method in which our plugin can extract the necessary information about the runtime of the application, such as, how long functions run, which processes they call (child or async) and which threads they run on. It runs during the build process, instrumenting by injecting 100% of all functions and frameworks automatically without sampling.

Slices

The visual representation of a code’s function/process. The length of the slice indicates how long it takes that process to execute.

The width of the slice represents the duration of the executed process and its position indicates the start time.

Trace

Think of a trace as the technical representation of a mirror showing us the user's journey. It includes hardware and software advances occurring through an entire app stack.

The trace viewer will show vital information such as what functions were invoked, their duration, and most importantly, their execution paths. The visualization of execution paths is crucial because it allows everyone to see the sequence of functions and how they connect and highlight optimization opportunities.

(User) Flow

Flow is the path a user takes to complete a task within the app. For example, the user types in “restaurant near me”. The app then returns search results. Finally, the user viewing searched results is considered a flow.

R1.1 - New UX & UI

Flow Library

  • Create, view and delete flows
  • Sort flow by favorites, popularity, last edited, and by name

Flow View

  • View the list of traces associated with a specific flow
  • Edit flow name and description
  • Subscribe to flow updates
  • Add new traces
  • Select from unassigned traces
  • Manually upload traces
  • Quickly filter by "My traces only”
  • Filter any field of the table and remove traces from the flow or attach them to a different flow

Unassigned traces view

  • Assign traces to one or multiple flows
  • Quick filter by "My traces only”
  • Filter any field of the table


Trace Viewer

  • Main Timeline (Flame Chart)
      •   Display slices on timeline, sorted by time
      •   Display slices full name on hover
      •   Ability to zoom with WASD or trackpad
      •   Arrow measurement. Enable you to understand the duration of one function to another
      •   Ability to add/remove any thread to favorites
  • Global Timeline (Aggregation View)
      •   Display preview of the whole timeline in a condensed view
      •   Ability to set start and end of the focus zone of the video timeline, synced with the flame graph timeline
  • Search
  • Connections
      •   Build new connections
      •   Build connection with real-time feedback
      •   Visually highlighting slices available for connections
  • Flags
      •   Ability to add/remove flag
      •   Ability to drag and change flag position
      •   Ability to label, change color, and add notes to flags
  • Details View
      •   Display slice info
      •   Display execution path info
  • Execution paths feature
      •   Ability to show the full execution path available for the selected slice
      •   Filter out inactive threads and sort remaining threads by start time
      •   Show only the necessary depth of thread

R1.3 - Video

New Feature - Video preview synced with trace

With the new Video synced with trace feature you will be able to see what’s happening on the phone screen at every point of the recorded trace.

Video synced with trace feature allows you to:

  • Quickly find the beginning and end of user flows
  • See the user actions
  • Visually identify performance opportunities (like jitteriness, lags and long network requests)
  • Visually identify when the screen was updated

Seeing how your application functions in real life provides valuable context that helps to understand what’s happening - even when the code is hard to follow:

  • Ability to upload recorded video via PS Tool Web UI to a specific trace
  • Video preview thumbnails that allow you to quickly navigate video on the global timeline
  • Video tab
      •   Large Preview of the video recording
             •   Ability to play and pause video
             •   Ability to loop video
             •   Ability to delete video
Companion App
  • Ability to upload recorded video via Companion app to a specific trace
  • Added information with User Flow description
  • Added information with project platform information in the project list
  • Added information with user role
Trace Viewer
  • Vertical scroller on flamegraph, with the ability to jump to the top or bottom
  • Ability to pin a selected choreographer and made it available to anyone opening the trace
  • Disable pin-zoom for non flame chart elements
Misc
  • Updated technical copies to human readable copies for all error messages

R1.2 - Admin

March 3, 2022
Admin Screen

A system for monitoring, maintaining, and controlling user access to your teams and projects. This is where you can:

  • Update project icons and details
  • Remove project
  • Update team member's role
  • Send/Resend invitation link
  • Add/Remove a team member
  • Enable/ disable the domain allow list so that team members of your organization can join
Login Screen
  • SSO with Google
  • Reset password
  • Register account
Flow Library
  • Ability to add, save and edit Flow titles and descriptions.
Trace Viewer

[New]

  • Tools to prioritize and deprioritize threads so that you can better see an execution path
  • Pin thread
  • Deprioritize thread
  • Toggle to show all paths or the main execution path
  • "Show all paths" lets you see additional information about how things are executed, while "Show main execution path" lets you see the most straightforward path.
  • Toggle to sort threads to prioritize execution path (Hot Key: K). It provides you the ability to hide threads irrelevant to the execution path temporarily and see the execution path better.
  • Toggle to dim slices outside execution paths (Hot Key: P). All functions outside of the execution path are dimmed for better visibility.
  • Choreographer auto connections (Android only). Save your time by manually clicking on slices executed under the choreographer during the initial exploration process.

[Improved]

  • Slice name and connection lines styles updated for readability enhancement
  • Ability to zoom into small slices and read their names.
Mobile app
  • Ability to create Flows
  • Ability to share and upload traces to PS Tool and
  • SSO with Google
Miscellaneous
  • Customer Support System
  • You can now file a bug or feature request directly to us.
  • Documentation
  • You can now find all the information from what is PS tool, different performance optimization tracing concepts to step-by-step guides on how to use it.
